Products » Hydraulic Combi Cooler » OBC Series

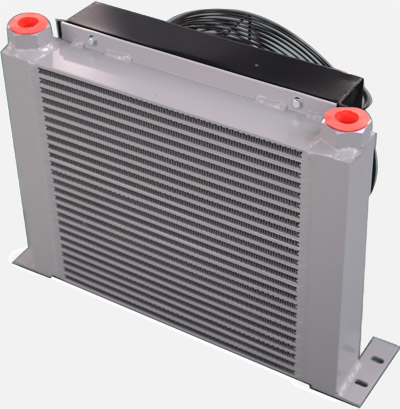

GIN STONE STANDAGIN STONE STANDARD HYDRAULIC OIL COOLERS are ideal for many uses including on-road & off-road vehicles and industrial hydraulic applications. We can supply any unit powered by AC, DC or hydraulic motors; with or without supporting feet; one or two pass application and even fitted with thermostat controls.

-contact with GINSTONE for PDF DATASHEET

Features:

» Bar & Plate Brazed Aluminum Core

» Rugged, Lightweight and Compact

» Best Heat Transfer per given size

» Air-side fin design minimizes fouling

» Welded aluminum fittings / ports

» Standard NPT ports, SAE BSPP avail.

» 12 or 24 volt DC fans

» Hydraulic fan motor drive available

» Customized units available

Materials:

» Cooler: Aluminum

» Fan Guard: Plastic

» Shroud: Powder Painted Iron

» Fan Blade: Plastic

Ratings:

» Operating Pressure: 300psi

» Operating Temperature:：350°F

» Oil flows to 110GPM
